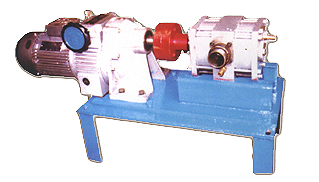

DTJ chocolate mass delivery pump
  Application:
The pump is specialized for delivery the chocolate mass.The pump body is with water-circulating heat preservation system.Customers can choose different model according to the flow rate required.The pump can be used individually or with other production line for automatic chocolate mass feeding.


Model
6L
20L~35L
60L~70L
Flow rate(L/min)
6
20
35
60
70
Delivery lift (m)
3
6
8
10
12
Rotational speed (rpm)
187
35~195
165~300
300
450
Power(kw)
0.37
0.75
1.1
2.5
4
Caliber(mm)
12.7
40
40
50
50
